Primitive R160 5-Bolt Rear Diff Skid Plate

Primitive - R160 “5-Bolt” Uni Rear Skid Plate

SKU:

SKIDR16-Uni-5-Bolt

Condition:

New

Shipping:

Calculated at Checkout

Description

Description

Stop Dragging Your Diff. Start Sliding Over Obstacles.

On most Subarus, the rear differential is the lowest point of the vehicle’s underbody. Without protection, it acts as an anchor, catching on rocks, roots, and ledges—potentially cracking the cast-iron housing or damaging the mounting studs.

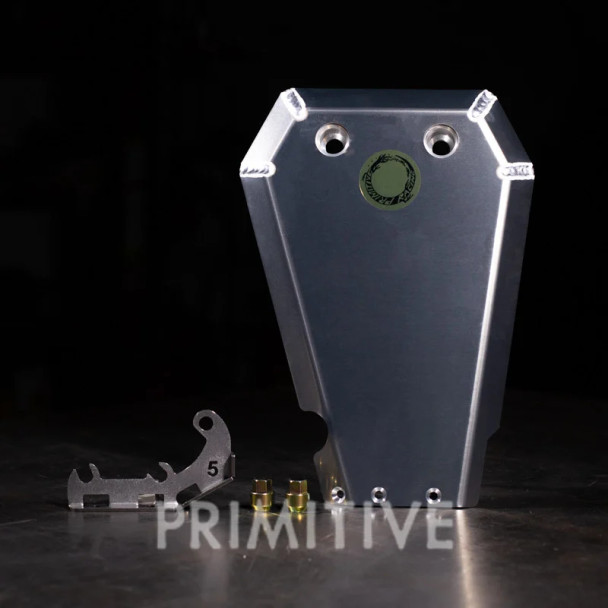

The Primitive Racing R160 Rear Differential Skid Plate is the "Original" solution for off-road Subarus. This heavy-duty 3/16" aluminum plate wraps around the bottom and front of the differential, transforming a vulnerable catching point into a smooth, armored surface that allows you to "sled" over trail obstacles with confidence.

Product Features

High-Clearance Design: Form-fitted to the R160 housing to maximize ground clearance while providing total coverage for the bottom of the differential and makes a great jack-up point!

Heavy-Duty 3/16" Aluminum: Laser-cut and CNC-formed from 5052 Aluminum for maximum impact resistance without the weight of steel.

Tapered Leading Edge: The front of the plate is angled to ensure that if you do make contact, the car slides forward rather than coming to a dead stop.

5-Bolt Mounting: Specifically designed for the 5-bolt pattern common on R160 rear differentials found on a wide variety of Subaru models.

Proven Performance: A staple in the rally and overland community for decades; tested in the harshest environments from the ARA Rally stage to the Rubicon Trail.

Technical Specifications

Material: 3/16" (5mm) 5052 Aluminum
Hardware: Stainless Steel Countersunk Bolts Included
Housing Compatibility: R160 (5-Bolt Pattern)
Finish: Polished Aluminum
Weight: 2.01 lbs
Hardware: Included (Zinc-Plated)
Installation: Direct Bolt-on
Manufacturer: Primitive Racing
Origin: Made in the USA

Installation & Pairing:

Installation is straightforward and utilizes existing mounting points on the differential. It is a "must-have" addition to complete your underbody protection suite alongside our Engine and Transmission skid plates.

Download: Rear Skid plate Install Instructions (PDF)

Vehicle Fitment

Make	Model	Submodel	Year From	Year To
Subaru	Baja	Sport 5spd Manual	2003	2006
Subaru	Baja	Sport A/T	2003	2006
Subaru	Baja	XT Turbo 5spd Manual	2004	2006
Subaru	Baja	XT Turbo A/T	2004	2006
Subaru	Crosstrek	2.0 5spd Manual	2013	2017
Subaru	Crosstrek	2.0 6spd Manual	2018	2019
Subaru	Forester	2.5 5spd Manual	2009	2013
Subaru	Forester	2.5 A/T	2009	2013
Subaru	Forester	2.5 XT 5sp Manual	2009	2013
Subaru	Forester	2.5 XT A/T	2009	2013
Subaru	Forester	XT 2.0 CVT	2014	2018
Subaru	Impreza	A/T	2008	2011
Subaru	Impreza	5spd Manual	2008	2019
Subaru	Legacy	5spd Manual	2000	2004
Subaru	Legacy	A/T	2000	2004
Subaru	Legacy	SUS 3.0	2001	2004
Subaru	Legacy	2.5 5spd Manual	2005	2009
Subaru	Legacy	2.5 GT 5spd Manual	2005	2010
Subaru	Legacy	2.5 CVT	2010	2012
Subaru	Legacy	2.5 6spd Manual	2010	2014
Subaru	Legacy	2.5 GT 6spd Manual	2011	2013
Subaru	Outback	5spd Manual	2000	2000
Subaru	Outback	A/T	2000	2000
Subaru	Outback	3.0 H6	2001	2004
Subaru	Outback	2.5 5spd Manual	2001	2009
Subaru	Outback	2.5 A/T	2001	2009
Subaru	Outback	2.5 XT 5spd Manual	2005	2009
Subaru	Outback	2.5 CVT	2010	2012
Subaru	Outback	2.5 6spd Manual	2010	2019
Subaru	WRX	Sedan	2008	2014
Subaru	WRX	Wagon	2008	2014
Subaru	WRX	FA20DIT 6MT	2015	2019
Subaru	WRX	FA20DIT CVT	2015	2019
