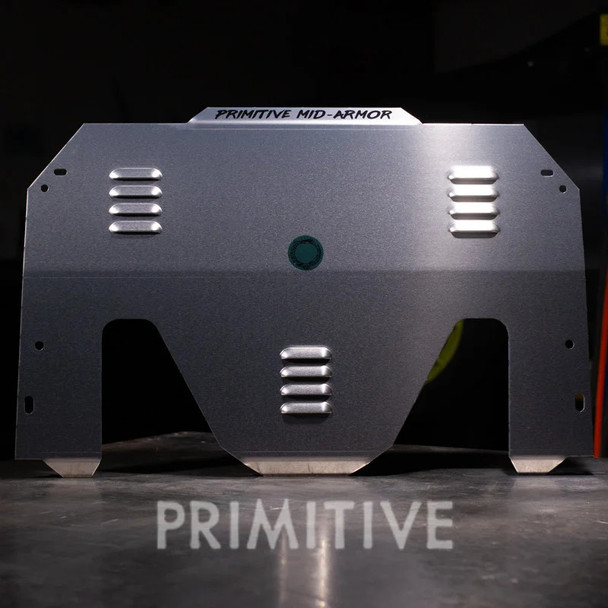

Primitive - Subaru Mid-Armor Transmission Skid Plate (3/16") - 10-19 Outback / Legacy

Essential Trail Security for the 2010-2019 Outback & Legacy.

The 2010-2019 Outbacks are legends in the overland community, but their transmissions remain a high-risk strike zone. The Primitive Racing 3/16" Mid-Armor Transmission Skid Plate is the definitive solution for bridging the gap between your front engine plate and the rear of your drivetrain.

Whether you are tackling rocky switchbacks or navigating deep ruts, this plate protects your CVT or manual transmission and sensitive wiring harnesses from costly impact damage.

Product Features

Rugged 3/16" Build: Crafted from 5052 Aluminum, this plate is thick enough to take a direct hit from a rock but light enough not to affect your fuel economy or suspension cycling.

Optimized Coverage: Specifically contoured to protect the transmission pan and the vulnerable electrical connectors that control your AWD system.

Snag-Free Design: The leading edge is designed to integrate with your front skid plate, creating a smooth surface that allows you to "sled" over obstacles rather than getting hung up.

Simple Bolt-On: Engineered to use factory mounting points. No drilling, welding, or permanent modification to your Subaru is required.

Polished Finish: Features a clean, polished aluminum look that resists corrosion and looks great under the car.

Why Your Subaru Outback Needs Transmission Armor

Modern Subaru CVTs and 5 & 6-speed manuals are marvels of engineering, but they are housed in relatively thin aluminum casings with exposed wiring harnesses. A single "oops" moment on a rocky shelf can lead to a multi-thousand dollar repair bill.

This Mid-Armor plate is the ultimate "insurance policy" for your drivetrain. By extending protection further back than a standard front plate, it shields the vital transmission pan and the harness connectors that keep your AWD system functioning in the wild.

Technical Specifications

Material: 3/16" (5mm) 5052 Aluminum
Hardware: Zinc-Plated Grade 8.8+ Bolts & Custom Spacers Included
Finish: Polished Aluminum
Weight: 11.65 lbs
Installation: Bolt-on (No drilling required)
Manufacturer: Primitive Racing
Origin: Made in the USA

Installation & Pairing:

The Ultimate Shield: This plate is designed to work as part of a modular system. For the ultimate "Full-Armor" setup, we recommend combining this with a Primitive Front Engine Skid Plate to create a continuous, armored shield from your front bumper to the center of the vehicle.

Download:10-19 Outback Mid Armor Install Instructions (PDF)
