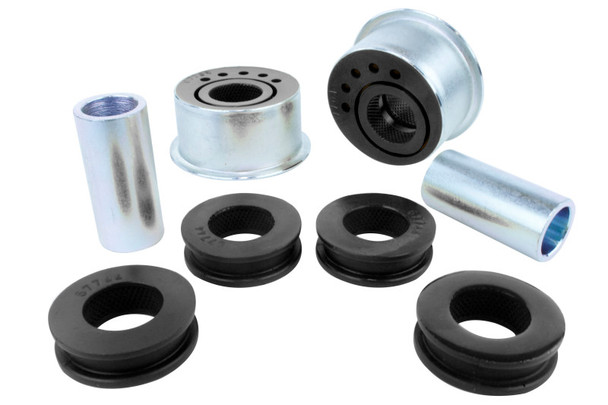

Whiteline Front Anti-Dive/Caster - C/A Lower Inner Front Bushing - 12+ BRZ / 12+ FR-S / 17+ Toyota 86
- SKU:
- KCA434
- MPN:
- KCA434
- Condition:
- New
- Shipping:
- Calculated at Checkout
On Sale
Frequently bought together:
Description
The Whiteline Anti Dive Kit is designed to add positive caster adjustment changing the nature of front anti-dive and lift. Revised anti-dive geometry minimizes deflection under braking whilst the low compliance synthetic elastomer bushings minimize dynamic caster loss and provide positive steering feedback. The result is superior traction under power and braking, improved turn-in and more consistent alignment angles during cornering.
Adds +0.5deg caster + anti-dive
Install Instructions:
Whiteline KCA434 Installation Guide
Vehicle Fitment
| Make | Model | Submodel | Year From |
Year To |
| Subaru | BRZ | Limited | 2013 | 2020 |
| Subaru | BRZ | Limited | 2022 | 2025 |
| Subaru | BRZ | Premium | 2013 | 2019 |
| Subaru | BRZ | Premium | 2022 | 2025 |
| Subaru | BRZ | Series.Blue | 2015 | 2015 |
| Subaru | BRZ | Base | 2016 | 2017 |
| Subaru | BRZ | Base | 2019 | 2020 |
| Subaru | BRZ | Base | 2022 | 2025 |
| Subaru | BRZ | Series.HyperBlue | 2016 | 2016 |
| Subaru | BRZ | TS | 2018 | 2018 |
| Subaru | BRZ | TS | 2020 | 2020 |
| Subaru | BRZ | Series.Gray | 2019 | 2019 |
| Toyota | 86 | Base | 2017 | 2020 |
| Toyota | 86 | Special Edition | 2017 | 2017 |
| Toyota | 86 | GT | 2018 | 2020 |
| Toyota | 86 | TRD Special Edition | 2019 | 2019 |
| Toyota | 86 | Hakone Edition | 2020 | 2020 |
| Toyota | GR86 | Base | 2022 | 2025 |
| Toyota | GR86 | Premium | 2022 | 2025 |
| Scion | FR-S | Base | 2013 | 2016 |
